LCD Video Wall Display System
A modular LCD display wall for control rooms, presentation spaces and multi-screen commercial information.
Configuration overview

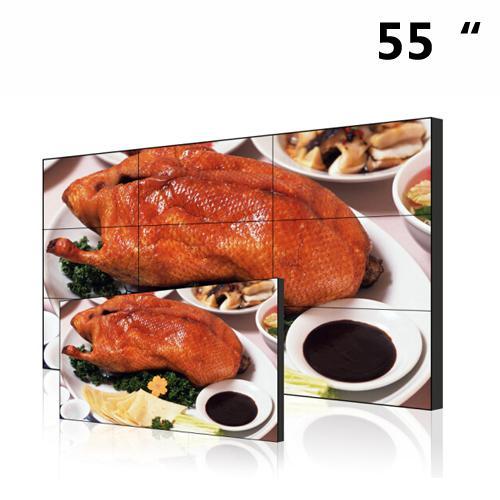

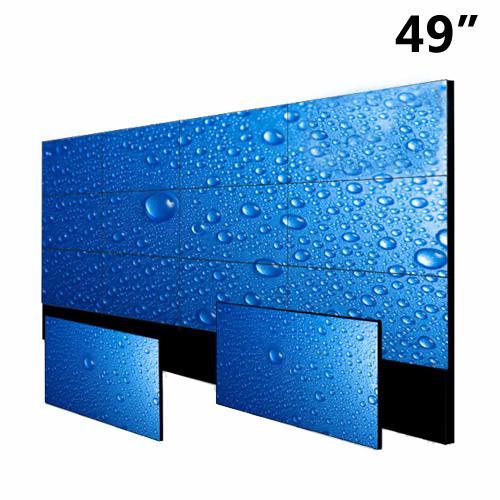

| Published panel sizes | 46 / 49 / 55 / 65 inches |
|---|---|
| Published seam range | 0.88–3.5 mm across different variants |
| Layout | Panel matrix designed to the project |
| Sources | Confirm controller, inputs and simultaneous windows |
| Calibration | Color and brightness matching to be planned |
| Installation | Wall mount and service access by project design |
These details describe a product family, not a single fixed SKU. Confirm the exact panel, dimensions, interfaces, software, relevant test evidence and commercial terms for the quoted configuration.
A clear role in the project.
Select the product around its installation context and the information it needs to communicate.
Scalable panel layouts for large visual surfaces
Control and monitoring rooms
Signal management selected around the source workflow
Corporate briefing spaces
Installation and calibration treated as one system
Retail feature walls
From a product to a working system.
For architects, retail designers and experience teams, the final specification should connect this display with the site and the content workflow.
- Record the available space, installation method and service access.
- Define the viewing distance, content format and daily operating schedule.
- Confirm player, software licenses, connectivity and integration responsibilities.
- Review the model drawing, packing dimensions and the quotation before ordering.
Where this format belongs
- Control and monitoring rooms
- Corporate briefing spaces
- Retail feature walls
Describe your site and the intended audience. The same product family may need a different configuration in another setting.
Explore application planningBefore you choose.
Answers to common configuration and deployment questions.
Does seam width mean one panel bezel or combined gap?
Confirm how the quoted measurement is defined. Request the model drawing, combined bezel-to-bezel width and the installed gap allowance.
Is a video wall controller included?
A panel quotation does not automatically include the controller, source switching, licenses or cabling. List source counts, resolutions, windows and control requirements.
Product reference: RSXD official LCD Video Wall Display System page ↗. Configuration information reviewed 27 October 2026. The order specification takes precedence over family-level website information.
Start with the right questions.
Share the location, application and intended experience. We can review a configuration and the work needed to bring it into use.
